Dabbsson 200W Flexible Solar Panel
Tax included.

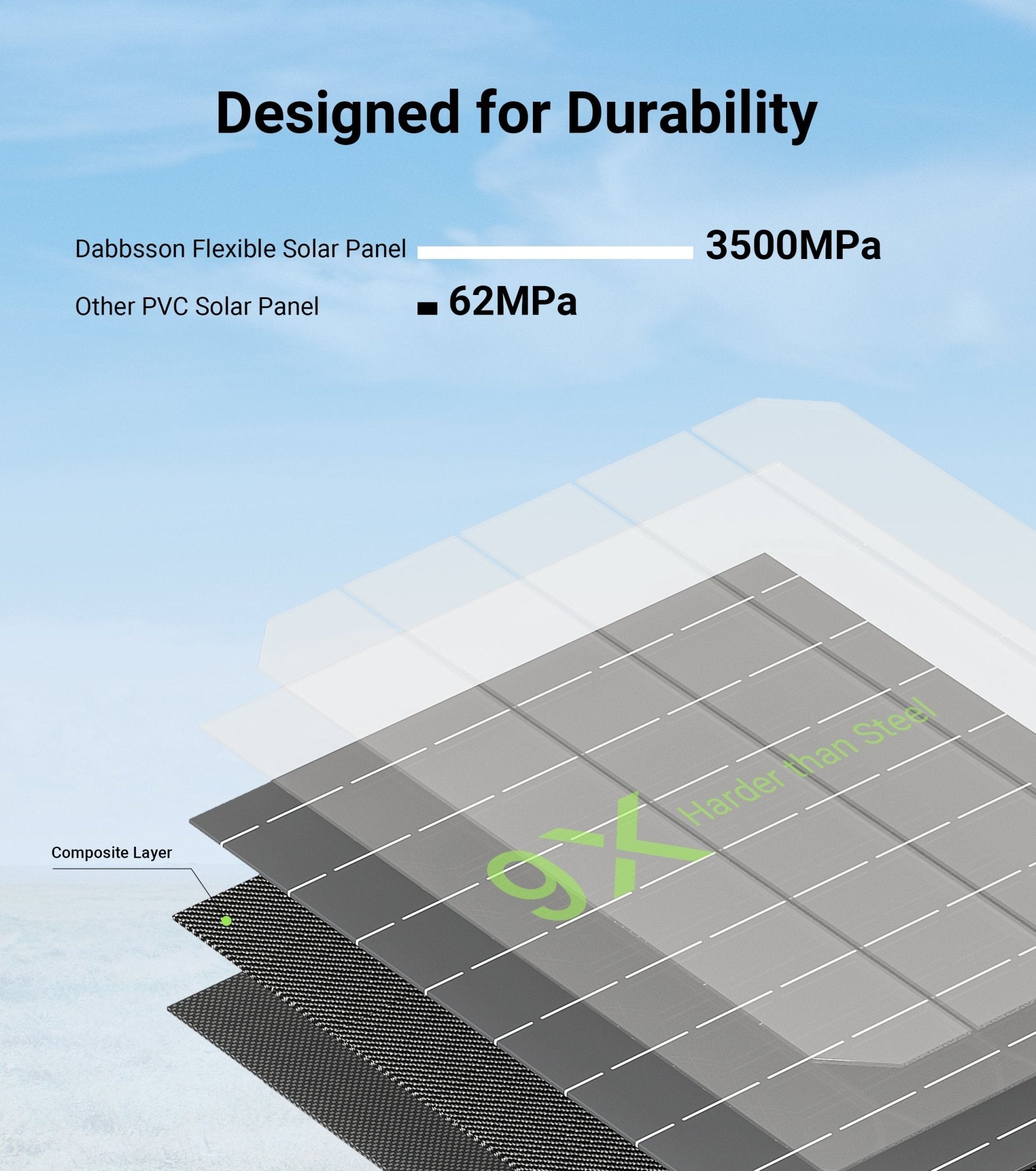

Durable Material for All Weather
This fiberglass solar panel is equipped with an ETFE Covering Material, ensuring it remains intact even after long-term use. Unlike panels with PET covering, it has enhanced durability and a longer service life. Its anti-scratch, self-cleaning, and sand-proof capabilities, along with resistance to impact and abrasion, make it highly reliable during transportation and maintenance activities. Additionally, the multiple protective material insulation reduces the module.

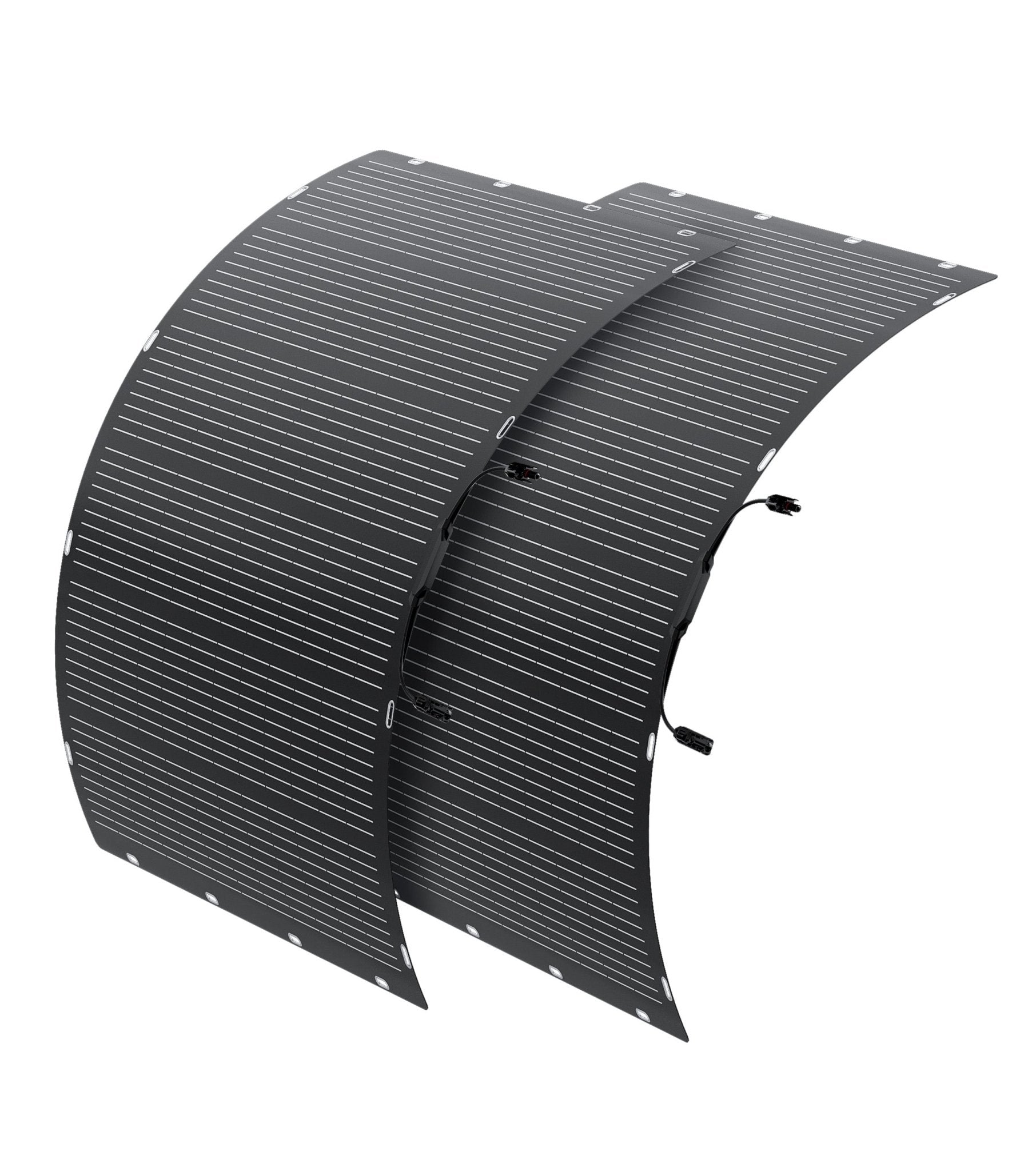

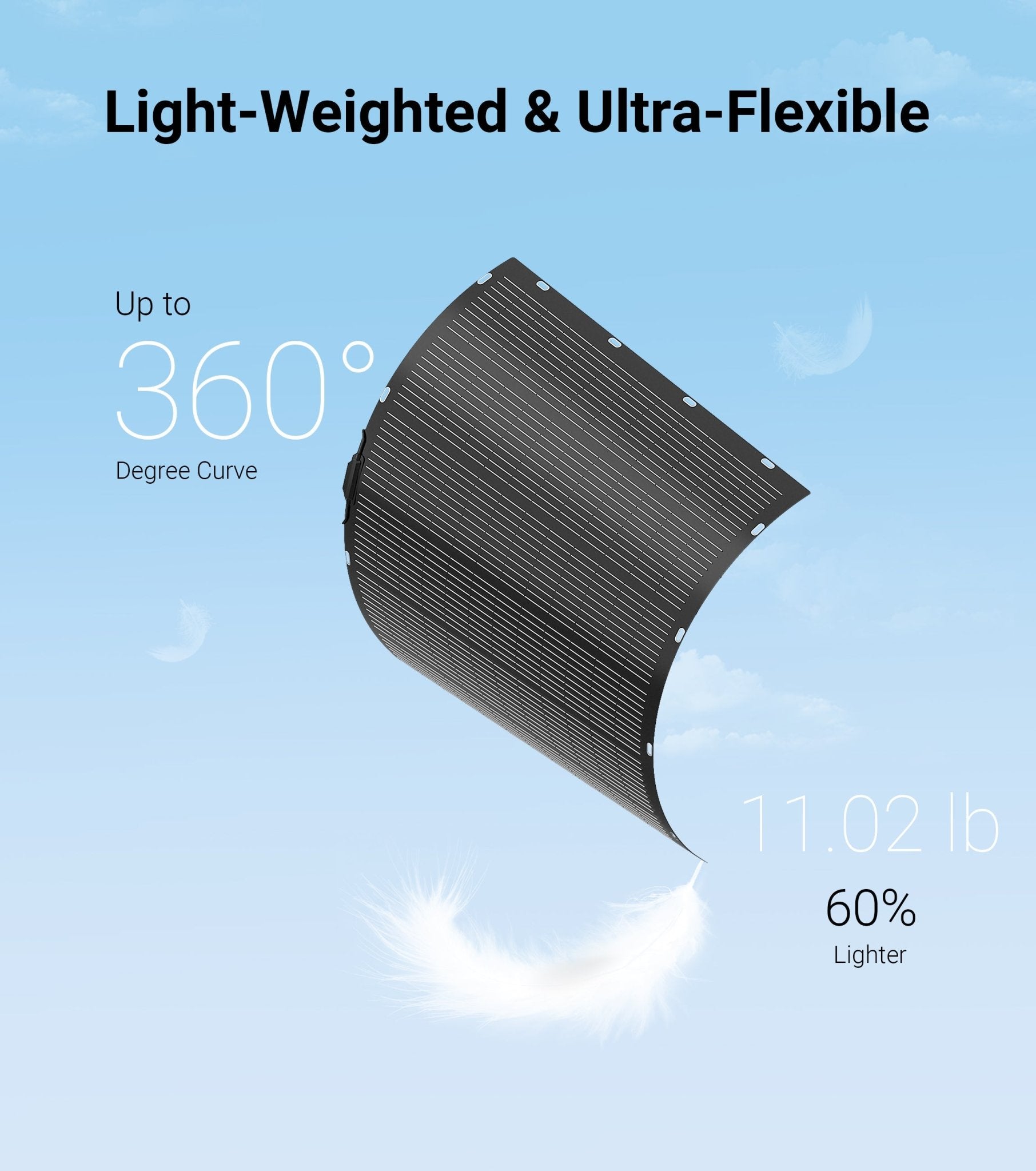

Light Weight & Extremely Flexible
Weighing only 8.8 lbs and measuring 0.11 inches thin, the single DBS200SF solar panel is significantly lighter and slimmer than conventional panels. Its advanced polymer material allows for extreme flexibility, enabling it to bend into a U-shape that perfectly fits curved planes like the front of an RV, roof, or balcony.
Never Worry About Extreme Conditions
With its 11-layer coating, this solar panel can withstand temperatures ranging from -10℃ to 40℃, making it suitable for various outdoor activities such as camping and hiking. Additionally, it features IP68 waterproof protection, ensuring its resilience against water damage.
Good Flexibility

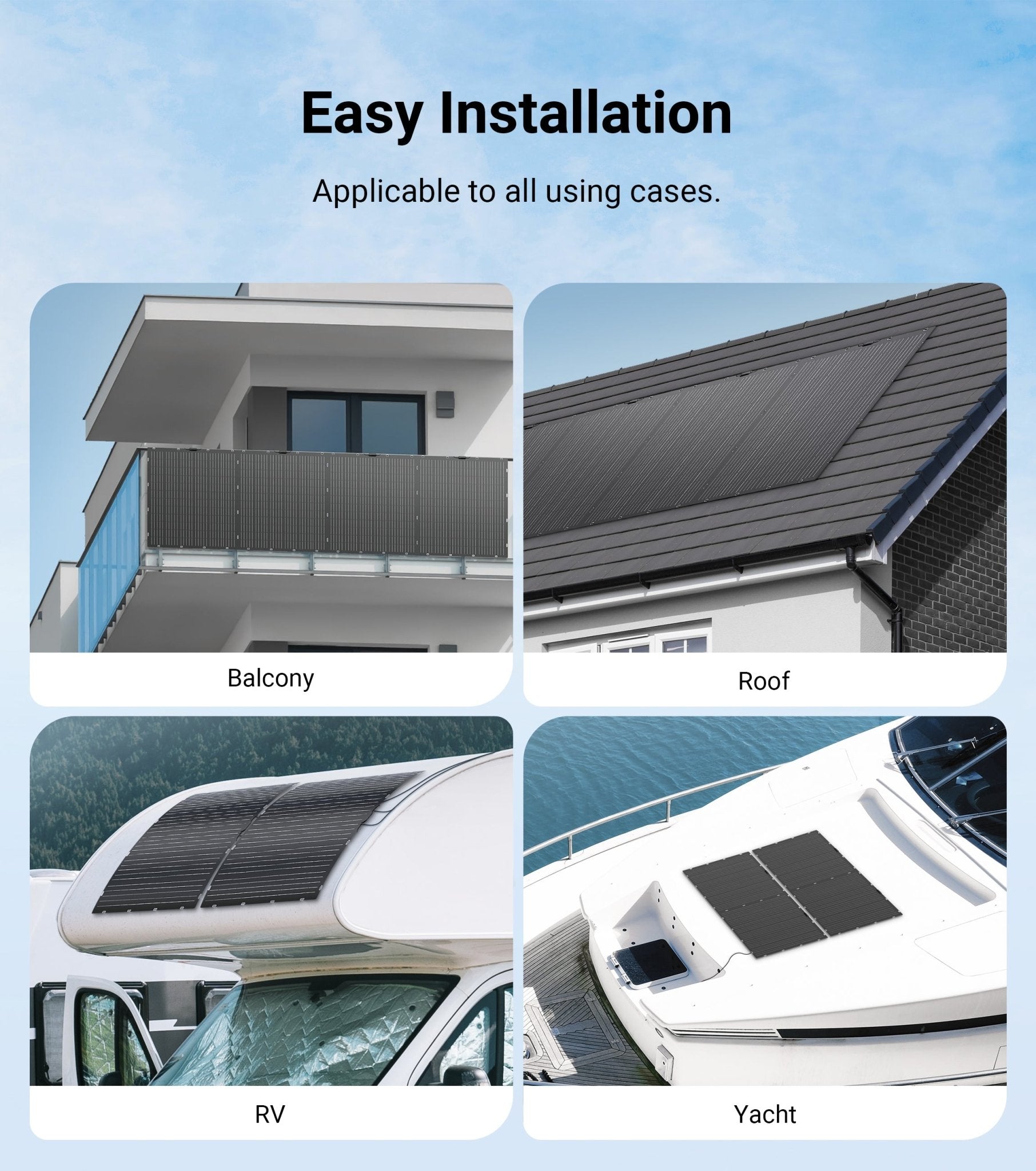

The solar flexible panel has a minimum arc radius of 40cm (15.75 in), offering versatile installation options. It can be mounted on trailers, boats, cabins, tents, cars, trucks, yachts, roofs, or any other irregular surface.
Worry-Free Shopping
Free Delivery
12+12 Months Warranty
30-Day Money Back
Delivery Period
3-5 business days shipping (Ship from the UK local warehouse) 3-5 business days shipping(Ship from the UK local warehouse)

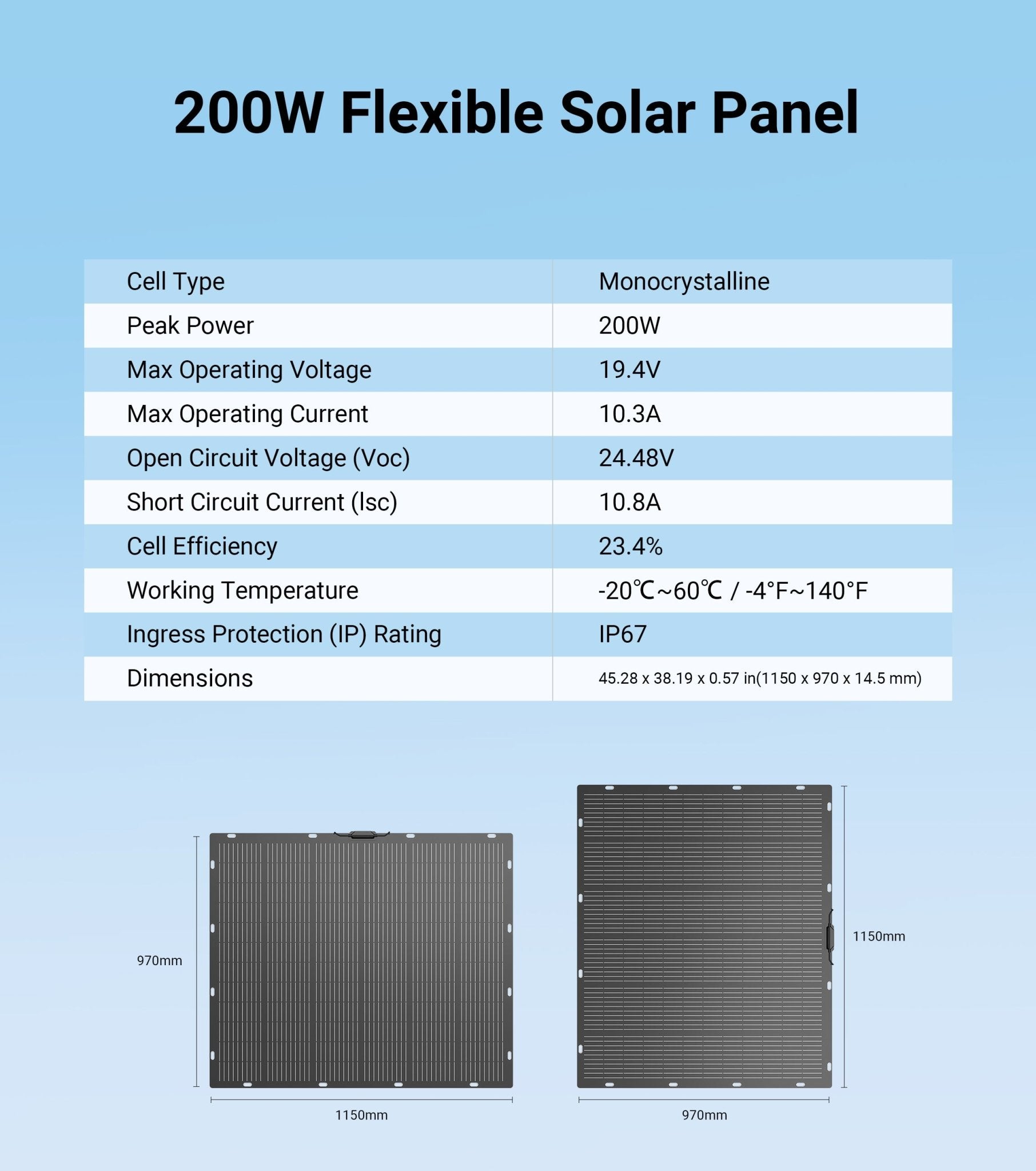

Specification
Model
DBS200SF
Max.Power(Pmax)
200W Max
Voltage at Pmax (Vmp)
19.44V
Current at Pmax (lmp)
10.3A
Open Circuit Voltage(Voc)
24.48V
Short Circuit Current (lsc)
10.8A
Power Tolerance
0~±5%
Temperature Coefficient(Pmax)
-0.35%/°C
Temperature Coefficient (lsc)
+0.04%/°C
Temperature Coefficient (Voc)
-0.25%/°C

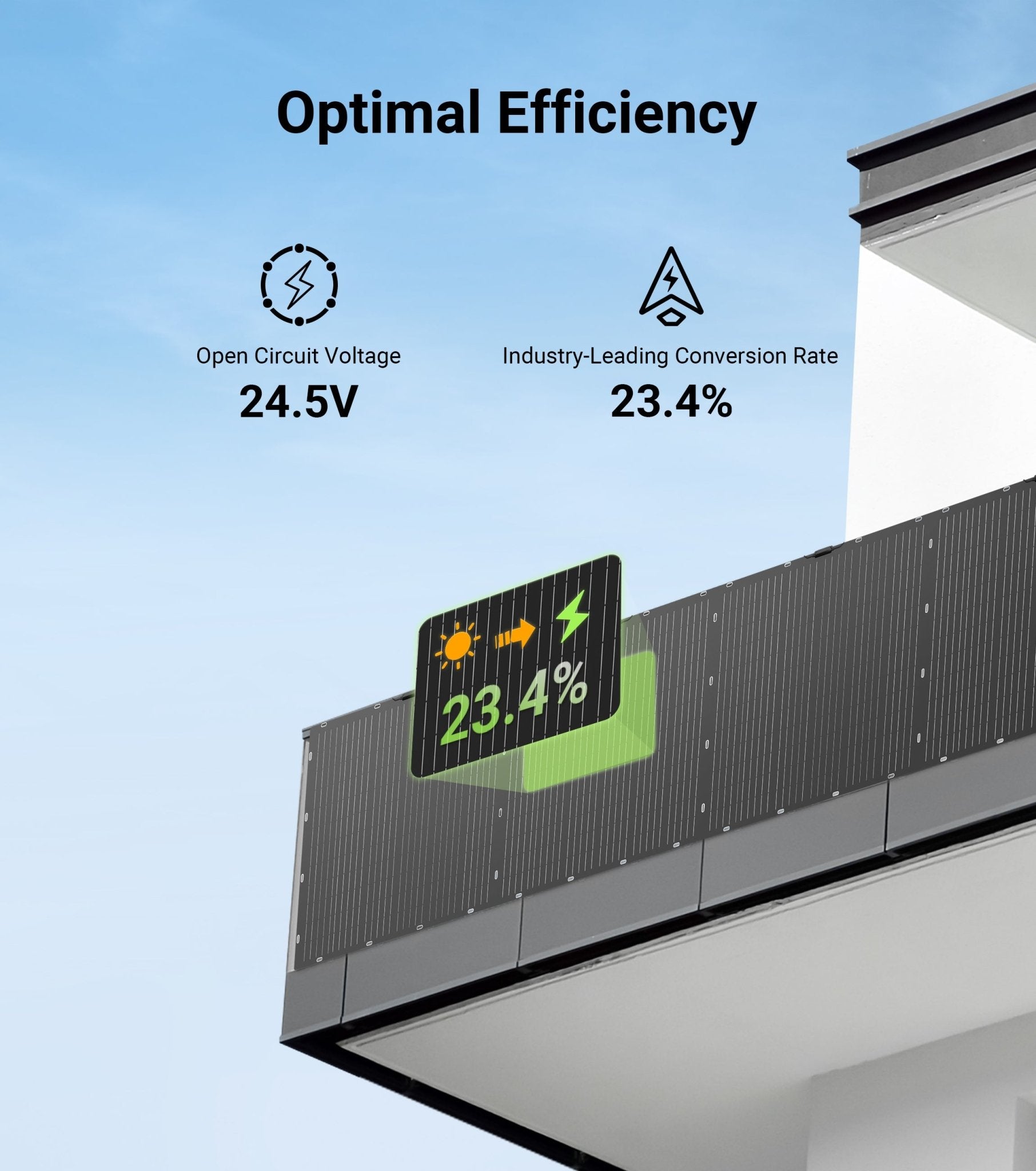

Solar Cells Efficiency
Up to 23.4%
*STC(Standard Test Conditions):Irradiance 1000W/m,Cell Temperature 25c. Air Mass AM1.5
Nominal Max.Power(Pmax)
150W
NMOT
-41℃±3℃
Max.Power Voltage(Vmpp)
18.10V
Max.Power Current (Impp)
8.26A

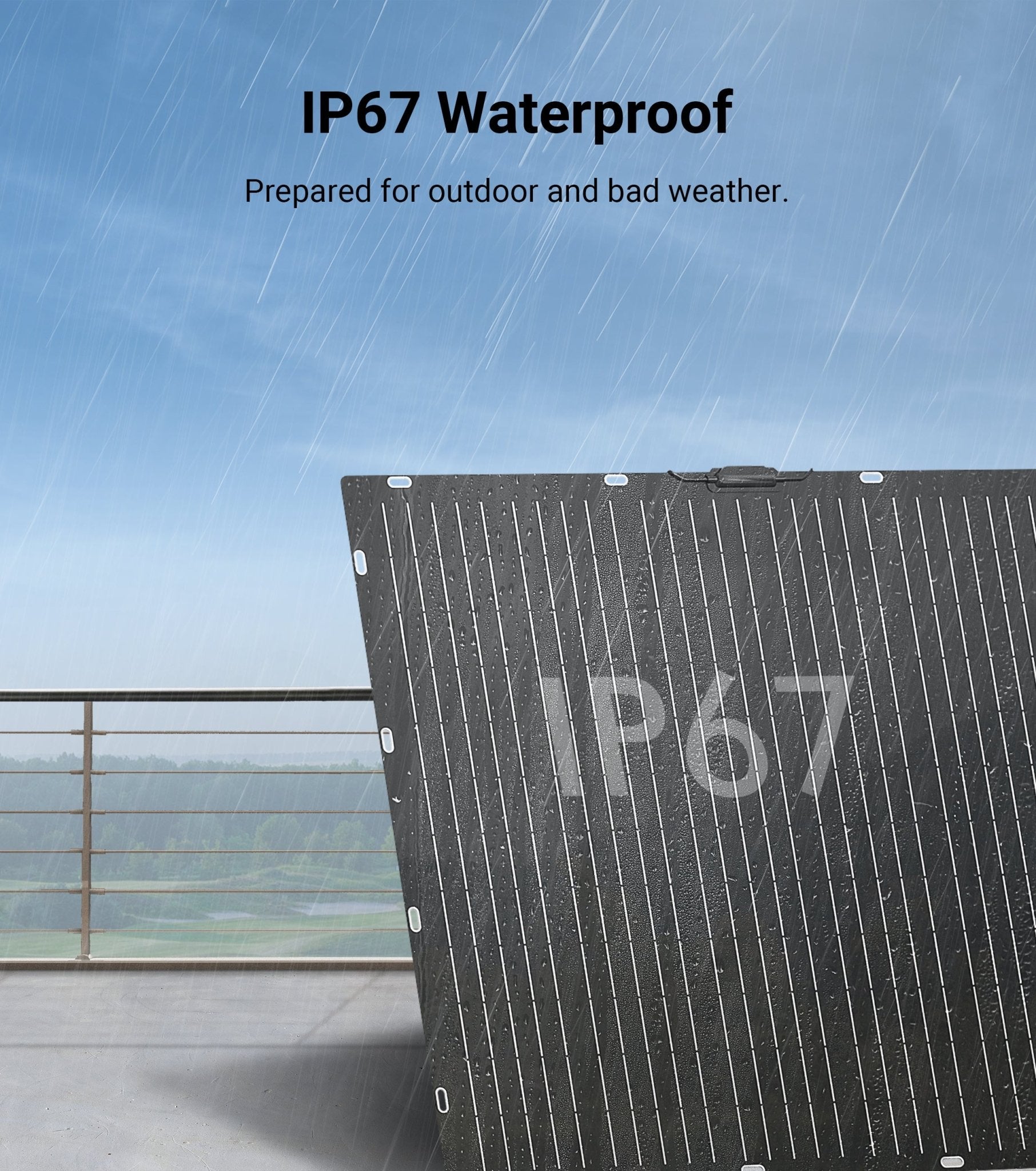

Ingress Protection (IP) Rating
IP67
NMOT(Nominal Module Operating Temperature):Irradiance at 800w/m,Ambient
Temperature20℃,Wind Speed1m/s.
Net Weight
4Kg
MC4
Connector
Cable
4mm² ,500mm
Dimensions (unfolded)
1150x970x14.5mm
Solar Cell
72.8x182 Mono
Included In The Box
DBS200SF*1
User Manual*1
DBS200SF*1
User Manual*1
